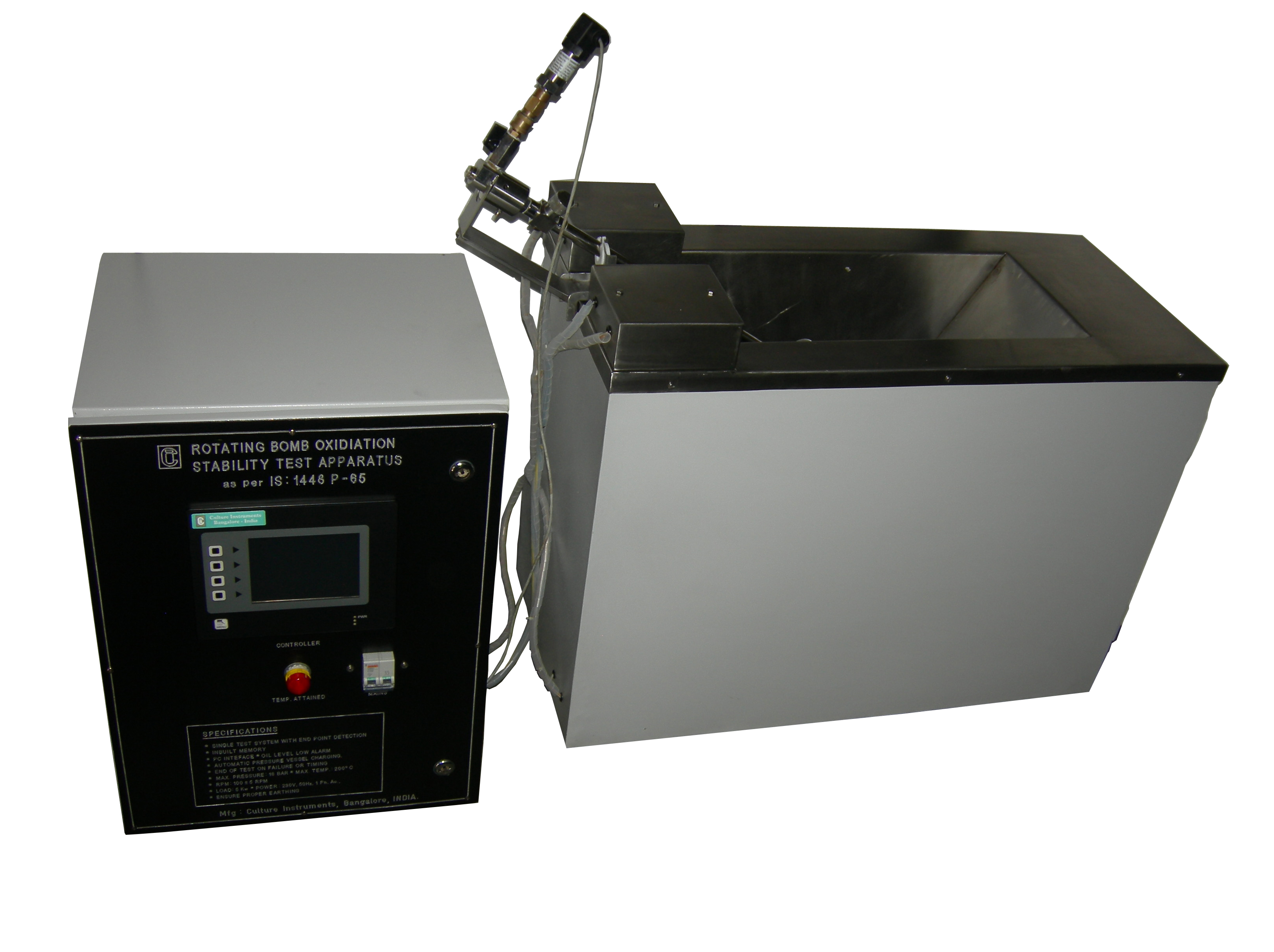

ROTATING PRESSURE VESSEL OXIDATION TEST APPARATUS

Code: 11027

Description: STANDARDS CONFIRMED TO : ASTMD2272,D2112,D4742 IS:1448 (P-65), IP-229.

 APPLICATION

 To Test Oxidation Stability of Steam Turbine Oils, Mineral Turbine Oils, Gasoline Automotive Engine Oils, Inhibited Mineral Insulation Oils by ROTATING PRESSURE VESSEL OXIDATION TEST METHOD.

Model

*Basic Model - Single, Double & Four Test - with Analogue pressure gauge

*Semi-Automatic Model - Single, Double & Four Test - With pressure and temperature recording

*Automatic Model - Single, Double & Four Test - Details Overleaf.

STANDARD FEATURES

*Bath Precisely controlled to 0.1 C

*Stainless steel pressure vessel with borosil glass beaker, Teflon / Bakelite cover and copper catalyst.

*Temperature Range : Above ambient to 200 C

*Temperature and pressure Units can be varied by the user.

*Carriage rotated by a heavy duty Ac motor at 100+5 RPM

*Automatic Detection of end point and end of test for both RPVOT and TFOUT tests.

*No special software is required to operate or interface the system.

*Automatic Charging Pressure correction vs temperature

*End of test on INDUCTION OR TIME base

*Pressure charging with automatic temperature compensation provision inbuilt
